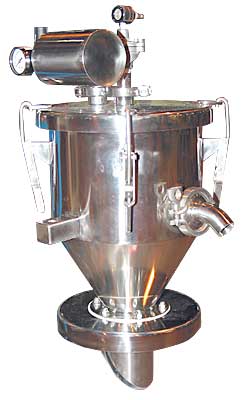

Pneumatic Tablet Press Loading System
- At Vac-U-Max India, we proudly offer a top-tier solution for tablet press loading through our cutting-edge Pneumatic Tablet Press Loading System. Designed to streamline the tablet loading process, this system is a game-changer in pharmaceutical manufacturing, enhancing efficiency, cleanliness, and overall productivity.
Efficient and Sanitary Loading
Say goodbye to manual scooping of products and messy handling. Our loaders draw materials directly from drums, boxes, storage containers, and process vessels, with impressive rates of 200-250 kg per hour.
Clean and Dust-Tight Connection
Our system ensures a dust-tight connection between the receiver and the tablet press hopper, guaranteeing the highest standards of hygiene and product quality.
Easy to Clean and Maintain
Cleaning and maintenance are made hassle-free with our system's compact design.
Automatic Pulse Jet Filter Cleaning
Peak operating performance is crucial in pharmaceutical manufacturing. Our system features automatic pulse jet filter cleaning, ensuring consistent and efficient operations.
Sanitary Construction and Material Options
We prioritize sanitary construction. Our Pneumatic Tablet Press Loading System is furnished in 304 stainless steel, with an optional 316L upgrade.
Efficient Level Control
A level sensor is integrated into our system, automatically initiating the conveying cycle when the tablet press hopper's material level reaches a low point.
Low Maintenance and Full Discharge
Our system is powered by an air-operated venturi power unit or a high-efficiency electric blower, both requiring minimal maintenance due to their few moving parts.
Complete Package and Easy Installation

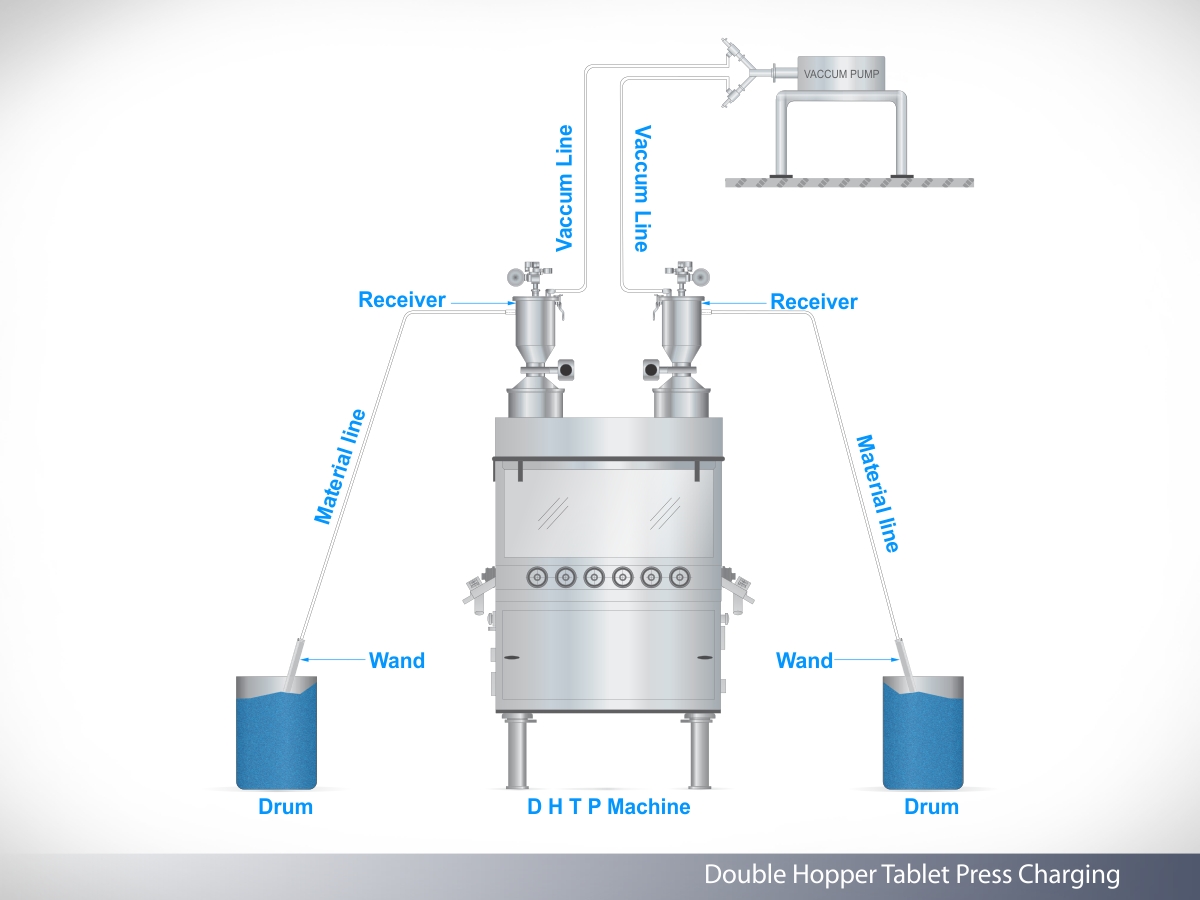

The Pneumatic Tablet Press Loading System by Vac-U-Max India is a comprehensive solution. The package includes the receiver, power unit, vacuum, hose, conveying wand, and control panel.
Specifications:
- Capacity: 200-250 Kg/Hr.
- Vacuum Source: Original air-powered venturi or electric blower.
- Filter Media: Unique VAC-U-MAX Uni-filter.
- Inlet Size: 1 1/2″ inch.
- Receiver Capacity: 0.25 cu/ft.
- Electrical Voltage: 110/220 Volts, 50/60Hz, 1-phase.
- Material of Construction: 304 stainless steel (optional 316L).
- Level Control: Automatic level sensor.
- Filter Cleaning: Automatic pulse-jet.
- Compressed Air Requirements: 1/2″ air line, 35 CFM, 60 PSIG.
- System Control: Solid-state electronics in NEMA 4/12 enclosure.
Experience Efficiency and Cleanliness
Upgrade your pharmaceutical manufacturing process with the Pneumatic Tablet Press Loading System by Vac-U-Max India. Efficiency, sanitation, and reliability are at your fingertips. Contact us today to learn more and enhance your production capabilities.
